Product Overview
Sand washing machine is the key equipment of sand and gravel aggregate production line, which is mainly used to remove the soil and impurities on the surface of sand and gravel, and to realize grading and dewatering to improve the quality of sand. According to the structure and working principle, it is mainly divided into two categories: wheel bucket sand washer and screw sand washer, which can meet the washing and grading requirements under different working conditions, and is widely used in construction, building materials, highway, water conservancy and hydroelectricity, and concrete mixing plant and other industries.

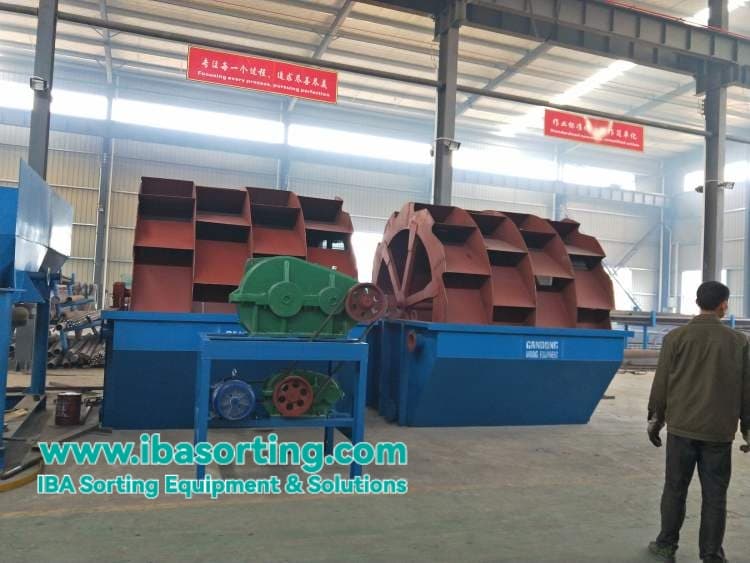

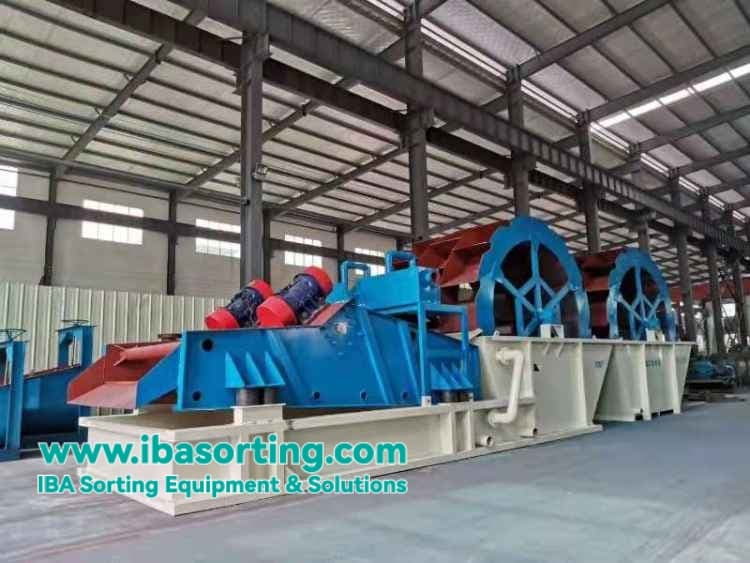

I. Bucket wheel sand washer
Core working principle
The motor drives the impeller to rotate slowly after multiple deceleration through the triangle belt, reducer and gear. Sand and gravel enter the washing tank from the feeding trough, tumbling and grinding each other under the impeller, effectively destroying the water vapor layer wrapping the sand particles and removing the surface impurities. At the same time, water is added to form a strong water flow, which discharges the impurities and light substances from the overflow port in time, and the clean sand and gravel are taken away by the blades, and finally discharged from the discharge chute to complete the washing operation.
Performance Characteristics
| Characteristic category |
Detailed description |
| ✅ High cleaning degree, minimal sand loss |
Impeller cleaning and water overflow cooperation, washing effect is good, the loss of fine sand and stone powder is very small, the finished sand grade and fineness modulus is stable and up to standard. |
| ✅ Reliable structure, low failure rate |
The impeller drive bearing device is completely isolated from water and sand, avoiding damage caused by water immersion and sand pollution, with long service life and almost no wearing parts. |
| ✅ Large processing capacity, low power consumption |
Optimized design, large processing capacity per unit time, and low power consumption, economical and efficient operation. |
| ✅ Easy maintenance |
No need for maintenance for a long time, greatly reducing maintenance costs and labor input. |
Applicable scenes
-
Suitable for all kinds of sand and gravel quarries, mines and building materials industries.
-
High-standard construction sand production with special emphasis on sand gradation and fineness modulus.
-
Used in conjunction with sand making machine to complete the final cleaning of sand and gravel.

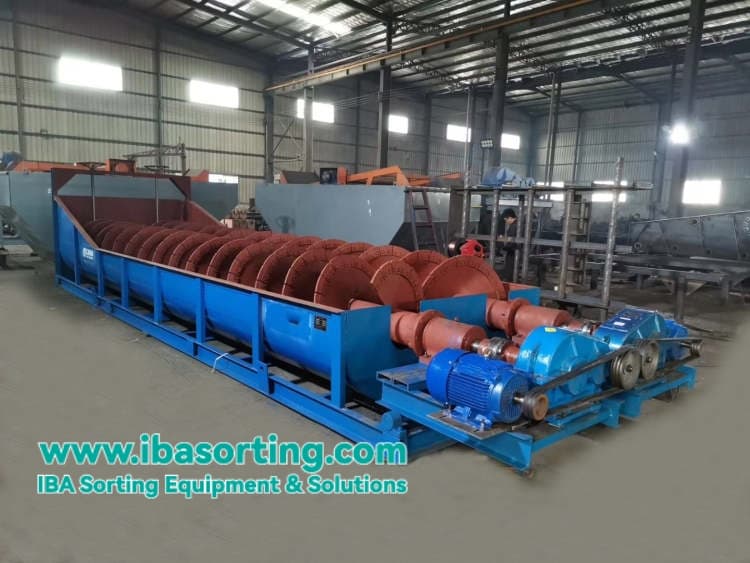

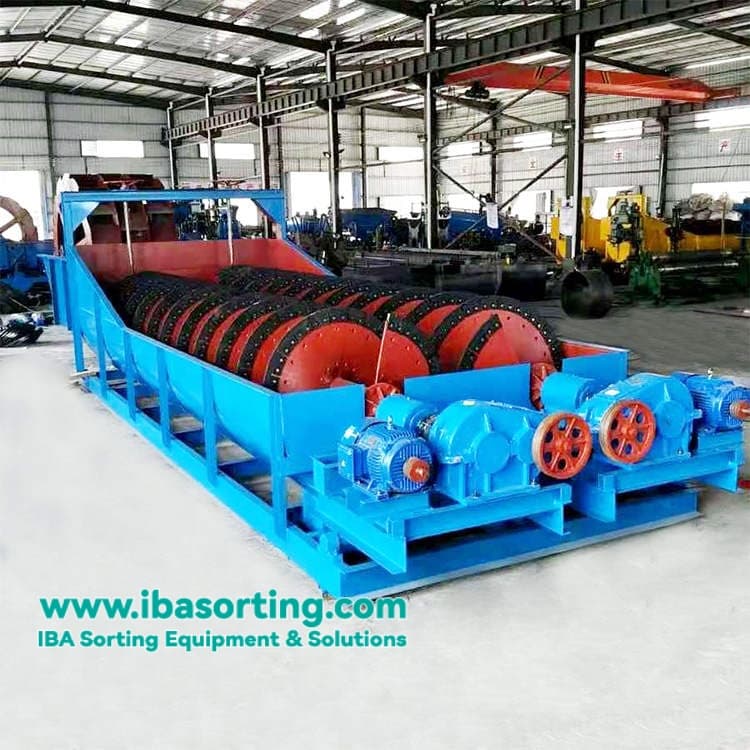

Second, spiral sand washing machine
Core working principle
The spiral device in the equipment rotates continuously in the tank, mixing and pushing the sand and gravel materials. During the mixing process, the soil and water in the sand and gravel materials are fully mixed into slurry, which is discharged from the overflow port on the side of the equipment; while the clean sand and gravel are gradually lifted and dewatered from the other end of the bottom of the tank body under the impetus of the spiral piece, and finally discharged from the discharge port on the top, thus realizing the integrated operation of cleaning, dewatering and grading.
Performance Characteristics
| Characteristic category |
Detailed description |
| ✅ Integrated cleaning and dewatering |
Unique spiral design, material lifting and dewatering can be realized at the same time of cleaning, with high functional integration. |
| ✅ Good sealing and durability |
Fully enclosed transmission device, effectively preventing water and dust from entering, protecting the bearings, durable equipment. |
| ✅ Strong processing capacity |
Suitable for washing fine and coarse grain size materials, large processing capacity, high washing degree. |
| ✅ Adjustable weir plate |
By adjusting the height of the weir plate, it can flexibly control the washing water volume, overflow size and washing degree, flexible operation. |
Applicable Scene
-
It is suitable for washing, grading and removing impurities in highway, water and electricity, construction and other industries.
-
It is especially suitable for large-scale washing of construction sand and road construction sand and gravel.
-
Projects with high requirements for cleaning effect and dewatering effect.
